ASTM D2444 Drop Hammer Impact Testing Machine 0-400J Falling Weight Impact Tester Machine

Product Categories

UTM Universal Testing Machine

 [10]

Hydraulic Universal Testing Machine

 [11]

Hydrostatic Pressure Testing Machine

 [12]

End Closure For Plastic Pipes

 [10]

Drop Hammer Impact Testing Machine

 [10]

Melt Flow Indexer

 [10]

HDT VICAT Tester

 [10]

Izod Charpy Impact Tester

 [10]

Sample Making Machine

 [7]

Liquid Surface Interface Tension Meter

 [10]

Differential Scanning Calorimeter

 [10]

Flammability Testing Equipment

 [7]
Contact Now
Beijing Tonghe Testing Machine Co., ltd
Visit Website
City:beijing
Province/State:beijing
Country/Region:china
Contact Person:MsZoe Bao
View Contact Details
Contact Now
China ASTM D2444 Drop Hammer Impact Testing Machine 0-400J Falling Weight Impact Tester Machine wholesale
  • China ASTM D2444 Drop Hammer Impact Testing Machine 0-400J Falling Weight Impact Tester Machine wholesale
  • China ASTM D2444 Drop Hammer Impact Testing Machine 0-400J Falling Weight Impact Tester Machine wholesale

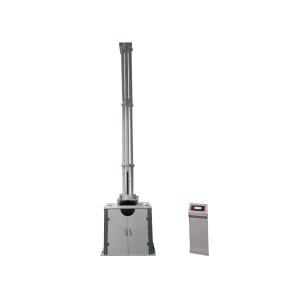

ASTM D2444 Drop Hammer Impact Testing Machine 0-400J Falling Weight Impact Tester Machine
Ask Latest Price
Video Channel
Brand Name :JINHAIHU
Model Number :XJL-630M
Certification :ISO9001
Place of Origin :BEIJING, CHINA
MOQ :1 set
Payment Terms :T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :20 sets per month
Delivery Time :7-15 working days
Packaging Details :Standard export wooden cases
Product name :Drop Hammer Impact Testing Machine
Hammer diameter :TUP A, TUP B, TUP C
Test Range :0-400J
Drop hammer quality :2.7kg, 5.4kg, 9.1kg, 13.6kg
Supporting :120° V-type or Iron plate
Max. Height :3000mm
Conform with standards :ASTM D2444, ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.
Power Supply :AC220V/50Hz
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description

ASTM D2444 Falling Weight Impact Resistance of Thermoplastic Pipe and Fittings

Application:

ASTM D2444 Falling Weight Impact Resistance Test for Thermoplastic Pipes and Fittings features a 120° V-type support or iron plate support to ensure stable and precise testing conditions. It operates on an AC220V/50Hz power supply for safe and efficient performance, and includes three hammer types (TUP A, TUP B, TUP C) to deliver a wide range of impact energies for diverse testing needs.

ASTM D2444 Drop Hammer Impact Testing Machine 0-400J Falling Weight Impact Tester Machine



Conform with standards:

ISO3127, ISO 6603, ISO4422, ISO 11343, ISO 8256 , ISO 16422, ASTM D2444, ASTM D3763, ASTM D7136, EN 744, EN 1411, etc.


Technical parameter:



 XJL-630M
Ambient temperature 10℃-35℃
Hammer(a total of 12 sets) Hammerhead A 2.75kg, 5.4kg, 9.1kg, 13.6kg
Hammerhead B 2.7kg, 5.4kg, 9.1kg, 13.6kg
Hammerhead C 2.7kg, 5.4kg, 9.1kg, 13.6kg
Height of the fall 0mm-3000mm,error≤±2mm
Diameter of the sample Φ630mm
Deviation of impact center from fixture center ≤2mm
Supporting 120° V-type or Iron plate
source 220VAC±10%
Outline dimension 720㎜×600㎜× 4750㎜
Net weight 550kg
ASTM D2444 Drop Hammer Impact Testing Machine 0-400J Falling Weight Impact Tester MachineASTM D2444 Drop Hammer Impact Testing Machine 0-400J Falling Weight Impact Tester MachineASTM D2444 Drop Hammer Impact Testing Machine 0-400J Falling Weight Impact Tester Machine
