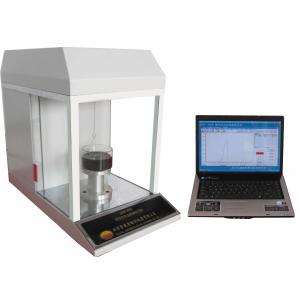

Liquid tension is measured by physical methods. This type of tensiometer is widely used in scientific research institutions, universities, and water and power sectors.

Performance:

PC-controlled operation
Automatic zero calibration
Peak value retention function
Real-time display of curves and values
Motorized test platform movement
Automatic result printing function

Technical parameter:

Measuring method	controlled by PC
Measuring range	0-199.9mN/m
Minimum resolution	0.01mN/m
Radius of platinum circle	R9.55mm
Radius of platinum wire	r0.3mm
Power supply	220V 50Hz
Relative error	within ±1%
Repeatability	within 1%
Size	400220350mm
Net weight	15kg

Configuration:

Name	Quantity
Main frame	1
Computer	1
Platinum Circle	2
beaker	1
hook	1
torsion wire	1
Calibration weight(500mg)	1

Product Features:

1.Equipped with an advanced electromagnetic balance force sensor, ensuring high-precision measurements and excellent repeatability for consistent results.

2.The 5-inch widescreen touchscreen integrates real-time display of ambient temperature, current tension, peak tension, equivalent tension, and more, offering intuitive operation and clear data visualization.

3.Features a dual-test design supporting both platinum plate and platinum ring methods, allowing users to select either method individually or employ both simultaneously for versatile testing.

4.Fully automated workflow eliminates human error entirely: auto-detects liquid interfaces, plots tension curves in real time, locks peak values, displays direct readings on-screen, and stops measurements autonomously, reducing manual intervention.

5.Enables full-range automatic calibration, supporting coefficient adjustment via standard weights, distilled water, and anhydrous ethanol for precise instrument tuning.

6.Quiet motorized sample stage with touchscreen-adjustable lifting speed (1–300 mm/min) ensures smooth, controlled movement during testing.

7.Quick-release bracket for platinum accessories facilitates easy installation/removal and allows on-demand force calibration with standard weights to maintain accuracy.

8.One-touch tare function guarantees stable, drift-free measurements without zero-point fluctuations.

9.Automatic temperature compensation converts readings to tension values at 20°C based on water/ethanol references, ensuring standardized results.

10.Data acquisition software is compatible with all Windows systems (WIN 7/8/10/XP), supporting seamless data collection and management.

11.Complies with multiple international and national standards, including GB/T6541-86, ISO1409-1995, GB/T22237-2008, and more, ensuring regulatory compliance.

12.Patented instrument design delivers technological uniqueness and a competitive edge in measurement accuracy and functionality.

Parameter:

Model	ZL-E1	ZL-E2
Test method	Design platinum plate and platinum ring at the same time, can choose one of them, can also choose two at the same time
Control mode	Manual lifting
Display mode	LED digital tube display
Measuring time	Platinum plate method ≤10s. Platinum ring method ≤50 s
Sample size required	Platinum plate method ≥3mL; Platinum ring method ≥5mL
Test range (mN/m)	0-1000	0-1000
Resolution ratio(mN/m)	0.1	0.01
Accuracy(mN/m)	0.1	0.01
Repeatability(mN/m)	0.1	0.01
Precision of Electronic balance	Domestic 1/1000 grams	Domestic 1/10000 grams
Weighing system type	Electromagnetic force balance
Accuracy automatic calibration	Accuracy automatic calibration: provide weight correction, distilled water and ethanol coefficient correction, temperature correction
Data acquisition software	Standard: the configuration software can operate, store, export Excel data and print by computer
The micro printer interface	Optional
Thermostatic temperature control interface	Optional: it can test the value of surface tension at a specific temperature
Equipment weight and size	20cm35cm35cm,7.5kg；
Power	100W
