Tensile Tests, HDT & Vicat Tests Sample Manufacturing Equipment for Testing Organization
Product Description:

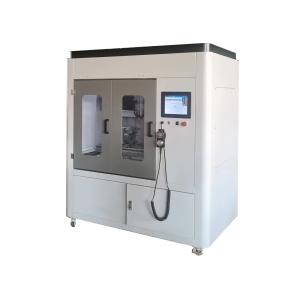

The Sample Making Machine is a high-performance specimen fabrication device engineered for preparing samples for tensile tests, impact tests, and HDT&Vicat tests. With a fast spindle motor speed of 24,000 r/min, it offers practical and user-friendly operation, featuring a touch screen display. Backed by a one-year warranty, this machine is an ideal solution for sample production and forming needs.
Features:
Employs an XYZA four-axis system for three-dimensional machining, suitable for processing pipe materials.
By utilizing a rotating axis to control the pipe's machining position, it enables simultaneous production of multiple samples on circular pipes. The process is computer-controlled and fully automated.
The cutting tool features water cooling with a spray cooling component, which can be activated as required.
Technical Parameters:
| Number of moving axes | 4 axes (X, Y, Z, A) |
| Maximum movement speed | 500mm/min |
| Minimum movement speed | 60mm/min |
| Spindle positioning accuracy | 0.02mm |
| X axis movement range | 550mm |
| Y axis movement range | 350mm |
| Z axis movement range | 400mm |
| A axis movement range | 360 ° |
| Spindle power | 2.2KW |
| Spindle speed | 24000RPM |
| Spindle cooling method | Water cooling |
| Tool diameter | φ 6mm |
| Material cooling methods | Natural cooling and water cooling |
| Maximum processing pipe diameter | 400mm |
| Maximum processing pipe thickness | 40mm |
| Overall dimensions of the host | 1397(L)×680(W)×1473(H) (mm) |
| Power supply | 220V ± 10% 3000W |
| The weight of the main engine | 280kg |
| Warranty | 1 year |
Applications: The WZY-I Sample Crafting Machine is a high-precision and high-efficiency device specially designed for plastic pipe manufacturers, universities, and testing institutions. It can efficiently produce high-accuracy samples for tensile tests, impact tests, and HDT&Vicat tests. Equipped with a user-friendly PC control system, it ensures excellent performance and safety. The WZY-I is certified by ISO and CE, and comes with a 1-year warranty.
Support and Services:
Sample Making Machine Technical Support & Service
Our Sample Making Machine is engineered for the highest standards of reliability and quality. We offer comprehensive technical support and services to help you maximize your machine's performance.
Pre-purchase Support
We provide pre-purchase consultation to help you understand the machine's features and capabilities. Our expert team will address any questions you have before purchasing, ensuring you make an informed decision.
Installation & Setup
Our experienced technicians will handle the installation and setup of your Sample Making Machine, including precise calibration to ensure optimal performance.
Maintenance & Repair
We offer scheduled maintenance and repair services to keep your machine operating smoothly. Our technicians possess in-depth knowledge of all operational aspects for prompt solutions.
Training & Support
We provide comprehensive training to ensure you use the Sample Making Machine efficiently. Our team will guide you through all features to maximize its potential.
FAQ:
-
Q: What is the model number of the Sample Making Machine?
A: The model number is WZY-I.
Q: What certifications does the Sample Making Machine have?
A: It is certified with ISO and CE.
Q: What are the features of the Sample Making Machine?
A: It is a high-precision machine that delivers accurate and stable sample-making performance.
Q: What materials can the Sample Making Machine process?
A: It can process all types of non-metallic pipe materials.
