The Sample Making Machine is a high-end, reliable device designed for manufacturing, shaping, and producing samples with high precision. Equipped with a PC-based control system, it ensures an accuracy of up to 0.03mm, delivering efficient and precise performance. Its safety features include an emergency stop function, providing enhanced protection for users.

This Sample Maker is the ideal choice for those seeking a reliable, safe, and precise sample manufacturing solution. It excels in sample production, forming, and fabrication. With this Sample Production Device, you can be confident that samples will be formed with the highest level of accuracy and safety.

Features:

Product Name: Sample Making Machine
Application: Prepares specimens for tensile tests, impact tests, HDT (Heat Deflection Temperature) & Vicat tests
Display: Touch screen
Weight: 280 kg
Accuracy: 0.03 mm
Safety System: Emergency stop function
Functions: Sample crafting machine, sample manufacturing equipment, specimen preparation device

Technical Parameters:

Number of moving axes	4 axes (X, Y, Z, A)
Maximum movement speed	500mm/min
Minimum movement speed	60mm/min
Spindle positioning accuracy	0.02mm
X axis movement range	550mm
Y axis movement range	350mm
Z axis movement range	400mm
A axis movement range	360 °
Spindle power	2.2KW
Spindle speed	24000RPM
Spindle cooling method	Water cooling
Tool diameter	φ 6mm
Material cooling methods	Natural cooling and water cooling
Maximum processing pipe diameter	400mm
Maximum processing pipe thickness	40mm
Overall dimensions of the host	1397(L)×680(W)×1473(H) (mm)
Power supply	220V ± 10% 3000W
The weight of the main engine	280kg
Warranty	1 year

Applications:

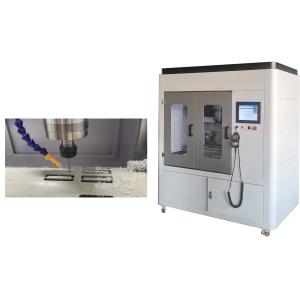

Introduction to the Sample Making Machine WZY-I

The Sample Making Machine WZY-I is a reliable sample fabricating machine made in Beijing, China. It is certified by ISO and CE. This sample production device is highly accurate and efficient, with a PC control system and an automatic operation mode. The spindle motor speed of this machine reaches up to 24000r/min.

The Sample Making Machine WZY-I is suitable for a variety of sample production needs, such as sample production for research and development, sample production for production line testing, sample production for quality control, and so on.

The Sample Making Machine WZY-I provides users with an efficient and accurate solution for sample production jobs. It is a reliable and cost-effective sample producing machine.

Support and Services:

Sample Making Machine Technical Support and Service

We offer comprehensive technical support and services for the Sample Making Machine. Our team of certified engineers and technicians is dedicated to assisting with any product-related inquiries or concerns, including:

Installation & Setup Assistance
Troubleshooting & Repair Services
Maintenance & Upgrades
Technical Support via Phone & Email

We are committed to delivering exceptional customer service. Our team is available 24/7 to ensure your Sample Making Machine operates at optimal performance around the clock.

FAQ:

Q: What's the model number of the Sample Making Machine?
A: The model number is WZY-I.

Q: Does the Sample Making Machine have any certifications?
A: Yes, it is certified with ISO and CE.

Q: What are the key features of the Sample Making Machine?
A: It features high efficiency, precision, easy operation, and reliable performance.

Q: What materials can the Sample Making Machine process?
A: It can process non-metallic pipe materials like PPR, PE, PVC, ABS, etc.
