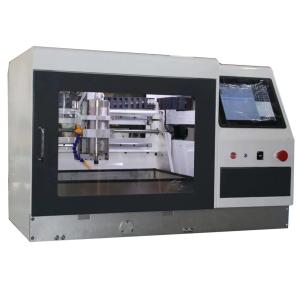

The WZY-4030A CNC prototype is designed for manufacturing all types of blocks and specimens for material testing on non-metallic raw materials. It can process dumbbell-shaped, rectangular, and round specimens, as well as notches for impact specimens, and mill irregular surfaces into flat plates.

Using CNC technology, it controls a three-axis linkage system via a program controller, driving XYZ-axis motors and complemented by a high-speed spindle motor to form a high-precision machining system. This enables the processing of various graphic samples with precision.

Proctable graphics:

1. Dumbbell Specimen

Supports production of almost all standard dumbbell-type specimens. The software has built-in dumbbell graphic programs, allowing processing via operation interface selection without requiring users to prepare machining programs—easy to operate and learn. Custom programs for special shapes can be arranged by contacting the manufacturer.

2. Rectangular Specimen

The most common is the 80×10 impact specimen. Select rectangular processing in the software, input length/width and other necessary parameters to start machining.

3. Round Sample Block

Most commonly used as a circular Vicat temperature test sample block. Select circular processing in the software, input diameter and other necessary parameters for machining.

4. Straight Cutting

Cutting operations can be controlled manually or via the linear machining function in the program to realize plate cutting.

5. Notch Processing

Supports standard notches for beam or cantilever beam specimens. The machine is equipped with R0.1, R0.25, and R1.00 standard notch milling cutters, enabling production of three notch types specified in standards on specimens.

6. Flat Milling

Irregular materials can be milled into flat surfaces by inputting the length, width, and thickness of the milling surface in the software.

Standard configuration of equipment:

1. Industrial Control Touch Screen

Controls linear motion, plug motion, and other processing actions via an industrial-grade touch screen interface.

2. Electronic Handwheel

Standard equipment includes an electronic handwheel for precise adjustment of spindle position.

3. Z-Axis Tool Feeding Device

Enables automatic Z-axis tool feeding for precision, saving time and effort in operation.

4. Standard Tool Set

Comes with single-blade, double-blade milling cutters, and slotting cutters, suitable for processing various materials.

5. Dual Tooling Configurations

Includes two types of fixtures: one for flat plates and one for well-type plates, adapting to different material clamping needs.

Featured function:

1. High-precision & High-speed Machining
Capable of processing multiple specimens simultaneously. For instance, dumbbell, rectangular, and round specimens can be completed in a single operation on the same material.
2. Material Water-cooling Function
Features a water-cooling system to cool hot/melted materials during processing, preventing thermal deformation.
3. Processing Error Compensation
Includes a compensation function for errors caused by material expansion due to heating or compression during machining.

Main technical parameters:

Maximum machining length	400mm
Maximum processing width	300mm
Maximum processing thickness	50mm
Spindle motor speed	24000r/min
Accuracy resolution	0.003mm
The walking speed adjustable	100-3000mm/min
Host size	971×640×622mm(L×W×H)
The wight of the machine	65kg
