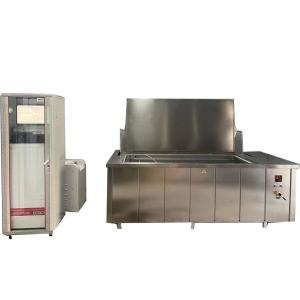

The pipe hydrostatic testing machine is designed to measure two key parameters for thermoplastic and composite pipes – including PP-R, PP-B, PPA, PE, PE-X, PVC (UPVC, CPVC), steel-reinforced polyethylene, and aluminum-plastic composite pipes: 1) the failure time under sustained constant internal pressure and temperature; 2) the maximum instantaneous bursting pressure during sudden rupture.
Product Characteristics:
Meet Standards:
| Model | XGY-10C | |
| Diameter range | Φ8-1800mm | |
| Stations | 3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized | |
| Control mode | Micro-control, industrial PC control | |
| Display mode | Industrial PC LCD color display | |
| Storage mode | PC strorage | |
| Print mode | Color printer output | |
| Test pressure | Pressure range | 0.1-10MPa |
| Control accuracy | ±1% | |
| Display resolution | 0.01MPa | |
| Working range | 5%~100%FS | |
| Indication error | ±1% | |
| Test Timer | Timer range | 0~10000h |
| Timer accuracy | ±0.1% | |
| Timer resolution | 1s | |
| Power | 380V 50Hz three-phase four-wire 1.5KW | |
| end caps models | from Φ16 to 630mm | |
| Water tank size | accoard to the pipe size | |
| Temperature range | 15-95℃ | |
| Dimensions (three stations) | 715×625×1700(mm)or others | |
