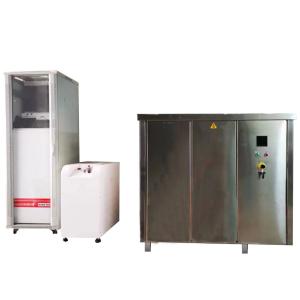

The Hydrostatic Pressure Testing Machine integrates advanced technology to generate pressure-time and pressure-temperature test profiles, ensuring the precision and reliability of test results. It provides accurate data for in-depth analysis and informed decision-making. Designed in compliance with international standards such as ISO1167, ISO9080, EN921, ASTMD1598, ASTMD1599, and ISO13, the machine guarantees high-quality performance.
Product Configuration:
Pressure control system (main frame)
Pressure supply system (pressure source)
Test tank and temperature control system
End closures: φ8–1800 mm (customizable per customer requirements)
Refrigeration system (optional per customer requirements)
Meet Standards:
| Model | XGY-16C | |
| Diameter range | Φ8-1800mm | |
| Stations | 3, 5, 6, 12, 15, 18, 20, 25, 50, 100 etc can customized | |
| Control mode | Micro-control, industrial PC control | |
| Display mode | Industrial PC LCD color display | |
| Storage mode | PC strorage | |
| Print mode | Color printer output | |
| Test pressure | Pressure range | 0.1-16MPa |
| Control accuracy | ±1% | |
| Display resolution | 0.01MPa | |
| Working range | 5%~100%FS | |
| Indication error | ±1% | |
| Test Timer | Timer range | 0~10000h |
| Timer accuracy | ±0.1% | |
| Timer resolution | 1s | |
| Power | 380V 50Hz three-phase four-wire 1.5KW | |
| end caps models | from Φ8 to 1800mm | |
| Water tank size | accoard to the pipe size | |
| Temperature range | 15-95℃ | |
| Dimensions (three stations) | 715×625×1700(mm)or others | |
