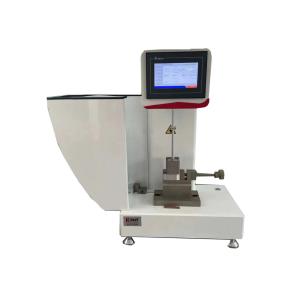

The Izod impact testing machine fully meets the requirements of GB/T1843 "Plastic Izod Impact Test Method", ISO180, GB/T2611, JB/T8761 standards. It is suitable for measuring the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, fiberglass, ceramics, cast stones, and electrical insulation materials. This machine is a testing instrument featuring a simple structure, beautiful appearance, easy operation, and accurate data. The display modes include three types: pointer dial display, digital LCD display, and computer-controlled display. The computer control mode can print experimental reports. According to the impact energy, the models are divided into ADN-5.5 type and ADN-22 type, which can realize the full energy of cantilever beam impact or any combination of energies.

Working Principle:

A pendulum hammer with known energy strikes the sample supported on a horizontal beam, destroying the sample with a single impact. The impact point is centered between the two supports. By calculating the energy difference of the pendulum before and after the impact, the energy absorbed by the sample during destruction is determined. The impact strength is then calculated based on the original cross-sectional area of the sample.

Instrument characteristics:

The instrument employs high-hardness precision bearings and a single-axis photoelectric sensor to fundamentally eliminate friction-induced losses, ensuring frictional energy loss is far below standard requirements.

It intelligently prompts operational status based on impact conditions, maintaining real-time interaction with experimenters to guarantee test success rates.

Meet standards:

International standard ISO180 "Plastics - Determination of Izod Impact Strength of Hard Materials";

National Standard GB/T1843 Izod Impact Test Method for Hard Plastics;

JB/T8761 Plastic Izod Impact Testing Machine.

Technical parameter:

Impact velocity	3.5m/s
Impact energy	11J, 22J
Maximum friction for the loss of energy	<0.5%
Preraised Angle	150±1°
Strike center distance	335mm
Pendulum moment	T11=5.89488Nm, T22=11.78976Nm
Impact blade to the distance above jaw	22mm±0.2mm
Impact blade round Angle	R(0.8±0.2)mm
Measuring Angle Accuracy	1’
Precision	0.05% of the indicated value
energy unit	J, kgmm, kgcm, kgm, lbft, lbin
Temperature	-10℃～40℃
Power	220VAC, 50Hz
Weight	80KG

Packing and Shipping:

We use high-quality materials to ensure product safety during transportation. The machine is first wrapped in bubble wrap, then placed in a robust cardboard box sealed with heavy-duty tape to prevent shipping damage.

Package dimensions and weight vary by model, but we optimize for compactness and lightness to minimize shipping costs. For international shipments, the machine is secured in a wooden crate for added protection, with all shipping documents and labels included.

We partner with reliable carriers for timely, safe delivery. Customers may request preferred shipping methods, and we will accommodate accordingly. Upon receipt, inspect the package for damage and contact our customer service immediately if issues arise.

FAQ:

Q: What's the model number of this product?
A: The model number is XJD.

Q: What certifications does this product have?
A: It's certified with ISO and CE.

Q: What's the minimum order quantity for this product?
A: The minimum order quantity is 1 set.
