Working Principle:
A pendulum hammer with known energy strikes the sample supported on a horizontal beam, destroying the sample with a single impact. The impact point is centered between the two supports. By calculating the energy difference of the pendulum before and after impact, the energy absorbed by the sample during destruction is determined. The impact strength is then calculated based on the original cross-sectional area of the sample.
Instrument features:

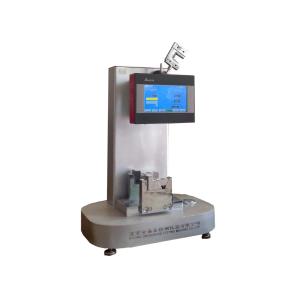

1.The electronic impact testing machine employs circular grating angle measurement technology.
2.It is characterized by high accuracy, stable performance, and a wide measurement range.
3.It digitally displays impact strength, pre-elevation angle, rising angle, and average values.
4.It is equipped with an automatic energy loss correction function.
Compliant standards:
ISO179-2000, ASTM D 6110, GB/T1043-2008, GB/T 18743-2002
Technical parameter:
| Impact velocity | 2.9m/s |
| Impact energy | 1J, 2J, 4J, 5J |
| Maximum friction for the loss of energy | <0.5% |
| Preraised Angle | 150±1° |
| Strike center distance | 230mm |
| Pendulum moment | Pd 1=0.53590 Nm, Pd 2=1.07180 Nm, Pd 4=2.14359 Nm, Pd 5=2.67949 Nm |
| Impact blade round Angle | R=2.0±0.5mm |
| Accuracy | 0.05% |
| Temperature | -10℃～40℃ |
| Power | 220VAC-15%～220VAC+10%, 50Hz |
| Weight | 60KG |
Specimen Type Table for Charpy Impact:
Unit: mm
| Specimen type | Length (L) | Width (Y) | Thickness(X) | Span between supporting points(b) |
| 1 | 80±2 | 10±0.5 | 4±0.2 | 60 |
| 2 | 50±1 | 6±0.5 | 4±0.2 | 40 |
| 3 | 120±2 | 15±0.5 | 10±0.5 | 70 |
