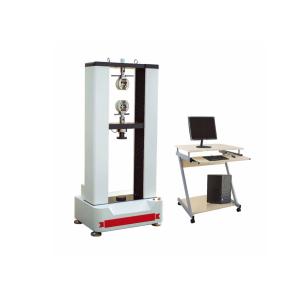

Electronic universal testing machine for wood tensile bending strength modulus of elasticity
Applications:
Electronic universal testing machines for measuring tensile and bending strength as well as modulus of elasticity in wood are indispensable testing equipment for evaluating wood, wood-plastic composites, and similar materials.
Widely applied across industries including aerospace, petrochemical, machinery manufacturing, wire & cable, textiles, fibers, plastics, rubber, ceramics, food, pharmaceutical packaging, aluminum-plastic pipes, plastic doors & windows, geotextiles, films, wood, paper, metal materials, and related manufacturing sectors. This equipment can automatically derive key test parameters in compliance with standards such as GB, JIS, ASTM, DIN, and ISO, including: maximum test force, fracture force, yield strength, upper/lower yield strength, tensile strength, breaking strength, percentage elongation at break, tensile elastic modulus, bending elastic modulus, shear properties, etc.
Technical Parameters:
| Model | XWW-10KN |
| Type | Double screw |
| Max. Load | 10KN |
| Resolution of Load | 1/300000 |
| Accuracy Grade | 0.5 grade |
| Force | Force-measuring Range | 0.5%~100%FS |
| Force-measuring Accuracy | ≤±0.5% |
| Range of force control rate | 0.005--5%FS/S |
| Relative error of force control rate | Within±1% of set value |
|
Metal extensometer
| Measurement range | 0.2-100%FS |
| Range of deformation rate | 0.02~5%FS/S |
| Error of indication | Within±0.5% |
| Resolution | 1/300000 |
| Large deformation | . Measurement range | 5mm-1000mm |
| Error of indication | Within±0.5% |
| Resolution | 0.001mm |
| Crossbeam | Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.001-500mm/min |
| Test width | 400mm (or according needing) |
| Total Crossbeam Valid Travel | 900mm |
| Clamps | Compression plate |
| PC System | Control force, displacement and deformation |
| Power Supply | AC220V; 400w |
| Standards | ISO 3346, ISO 3133, ISO 3129, ISO 6237, ISO 9087 etc |
| Weight | 280Kg |
Customization:
This customized service provides customers with the optimal Electronic Universal Testing Machine tailored to their specific requirements. The machine is characterized by a tensile space of 600mm, external dimensions of 1000mm×800mm×2000mm, a stroke of 1000mm, and a test force range spanning 3-300kN. It is also equipped with multiple safety protection mechanisms, including overload protection, over-travel protection, over-voltage protection, and over-current protection.
The Electronic Universal Testing Machine stands as an ideal solution for users seeking a reliable and efficient testing instrument to measure tensile strength. With its advanced safety protection systems and customizable configurations, customers can confidently obtain a testing machine that perfectly aligns with their operational needs.
FAQ:
Q1: What is an Electronic Universal Testing Machine?
A1: An Electronic Universal Testing Machine is a device used to measure the mechanical properties of materials, including tensile strength, compression strength, modulus of elasticity, and elongation.
Q2: What materials can be tested with an Electronic Universal Testing Machine?
A2: It can test various materials such as metals, plastics, elastomers, and composites.
Q3: How accurate are Electronic Universal Testing Machines?
A3: These machines feature high accuracy, with measurement errors within ±0.5% of the actual value.
Q4: What types of tests can be performed with an Electronic Universal Testing Machine?
A4: They support multiple tests, including tensile testing, compression testing, flexure testing, shear testing, and tear testing.
