Beijing Tonghe Testing Machine Co., ltd
WE OFFER ONLY WHAT SUITS YOU BEST!
Add to Cart

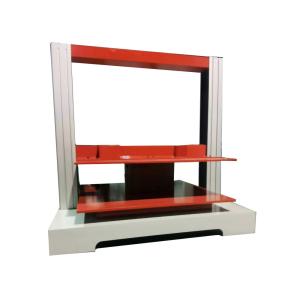

(1) Strength test: Measures the maximum compressive strength of cartons.
(2) Definite value test: Presets data to test carton strength and deformation.
(3) Stacking test: Enables stacking tests for 12 or 24 hours.
(4) Excellent design with precise screws and guide pillars to ensure stability.
(5) Servo motor control: Compression speed at 10 mm/min, return speed up to 100 mm/min.
(6) High-precision pressure sensor for accurate measurements.
| Model | XWW-50KN | |
| Type | Double screw | |
| Max. Load | 50KN | |
| Resolution of Load | 1/300000 | |
| Accuracy Grade | 0.5 grade | |
| Force | Force-measuring Range | 0.5%~100%FS |
| Force-measuring Accuracy | ≤±0.5% | |
| Range of force control rate | 0.005--5%FS/S | |
| Relative error of force control rate | Within±1% of set value | |
| Metal extensometer | Measurement range | 0.2-100%FS |
| Range of deformation rate | 0.02~5%FS/S | |
| Error of indication | Within±0.5% | |
| Resolution | 1/300000 | |
| Large deformation | . Measurement range | 5mm-1000mm |
| Error of indication | Within±0.5% | |
| Resolution | 0.001mm | |
| Crossbeam | Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.001-500mm/min | |
| Test width | 1500mm (or according needing) | |
| Total Crossbeam Valid Travel | 1500mm | |
| Clamps | Compression plate | |
| PC System | Control force, displacement and deformation | |
| Power Supply | AC220V; 1500w | |
| Standards | GB/T1040/1041/9341/8804/9647/17200, GB/6491, GB/T4857.4, GB/T4857.16, ISO7500-1, ISO5893, ASTMD6386, ISO2872, ASTM D642, ISO12048, etc | |
| Weight | 1280Kg | |
