Computer Controlled Electronic Universal Tension and Compression Machine
Applications:

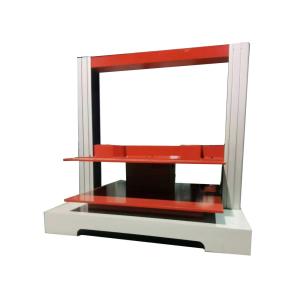

The test specimen is positioned between two parallel plates of the testing machine, after which uniform pressure is applied. The load and plate displacement are recorded until the specimen breaks or the load/plate displacement reaches a preset value.
Empty container compression test scope:
Cartons, cardboard, corrugated boxes, corrugated boards
Reference standards for empty box compression testing:
GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642
Product Description:
The Digital Universal Materials Testing Machine is also applicable for testing the mechanical properties of plastic films, composite films, flexible packaging materials, adhesive tapes, rubber, paper, and other products. It offers a displacement resolution of 0.001mm and force-measuring accuracy within ≤±0.5%, ensuring highly precise and reliable results.
The product features a large LCD display for easy viewing of test results, intuitive operation controls, and a robust design for durability. It requires simple setup and minimal maintenance, providing a cost-effective solution for material mechanical property testing and analysis.
Customization:
This customization service provides customers with the optimal Electronic Universal Testing Machine tailored to their specific requirements. The machine features a 600mm tensile space, dimensions of 1000mm×800mm×2000mm, a 1000mm stroke, and a test force range of 3–300kN. It is also equipped with multiple safety protections, including overload, over-travel, over-voltage, and over-current safeguards.
Technical Parameters:
| Model | XWW-10KN |
| Type | Double screw |
| Max. Load | 10KN |
| Resolution of Load | 1/300000 |
| Accuracy Grade | 0.5 grade |
| Force | Force-measuring Range | 0.5%~100%FS |
| Force-measuring Accuracy | ≤±0.5% |
| Range of force control rate | 0.005--5%FS/S |
| Relative error of force control rate | Within±1% of set value |
|
Metal extensometer
| Measurement range | 0.2-100%FS |
| Range of deformation rate | 0.02~5%FS/S |
| Error of indication | Within±0.5% |
| Resolution | 1/300000 |
| Large deformation | . Measurement range | 5mm-1000mm |
| Error of indication | Within±0.5% |
| Resolution | 0.001mm |
| Crossbeam | Crossbeam Displacement Resolution | 0.001mm |
| Crossbeam Speed Range | 0.001-500mm/min |
| Test width | 380mm (or according needing) |
| Total Crossbeam Valid Travel | 800mm |
| Clamps | Wedge Grip(or according to your needs) |
| PC System | Control force, displacement and deformation |
| Power Supply | AC220V;400w |
| Standards | GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790 |
