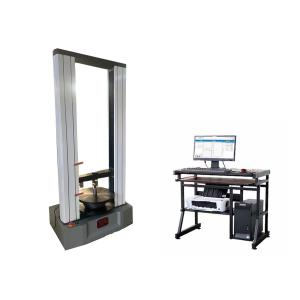

Featuring the ability to measure force in multiple units (kgf, gf, Lbf, mN, N, kN, Ton), the Electronic Universal Testing Machine enables laboratories to easily conduct tests on various materials such as metals, plastics, and composites.

Customization:

This tailored service provides customers with the optimal Electronic Universal Testing Machine to meet their specific requirements. The machine boasts a 600mm tensile space, dimensions of 1000mm×800mm×2000mm, a 1000mm stroke, and a test force range of 3–300kN. It is equipped with multiple safety safeguards, including overload, over-travel, over-voltage, and over-current protection.

Ideal for those seeking a reliable and efficient solution to measure tensile strength, the Electronic Universal Testing Machine combines enhanced safety features with customizable specifications. This ensures customers can achieve the perfect fit for their testing needs.

Support and Services:

Technical Assistance

We are available to answer any technical questions and provide guidance on the use of the product. Our experienced technical team can provide assistance with installation, operation, and troubleshooting.

Technical Parameters:

Model		XWW-10KN
Type		Double screw
Max. Load		10KN
Resolution of Load		1/300000
Accuracy Grade		0.5 grade
Force	Force-measuring Range	0.5%~100%FS
	Force-measuring Accuracy	≤±0.5%
	Range of force control rate	0.005--5%FS/S
	Relative error of force control rate	Within±1% of set value
Metal extensometer	Measurement range	0.2-100%FS
	Range of deformation rate	0.02~5%FS/S
	Error of indication	Within±0.5%
	Resolution	1/300000
Large deformation	. Measurement range	5mm-1000mm
	Error of indication	Within±0.5%
	Resolution	0.001mm
Crossbeam	Crossbeam Displacement Resolution	0.001mm
Crossbeam	Crossbeam Speed Range	0.001-500mm/min
Test width		380mm (or according needing)
Total Crossbeam Valid Travel		800mm
Clamps		Wedge Grip(or according to your needs)
PC System		Control force, displacement and deformation
Power Supply		AC220V;400w
Standards		GB/T1040104193418804964717200, GB/6491, ISO7500-1, ISO5893, ASTMD638695790
